Product Introduction

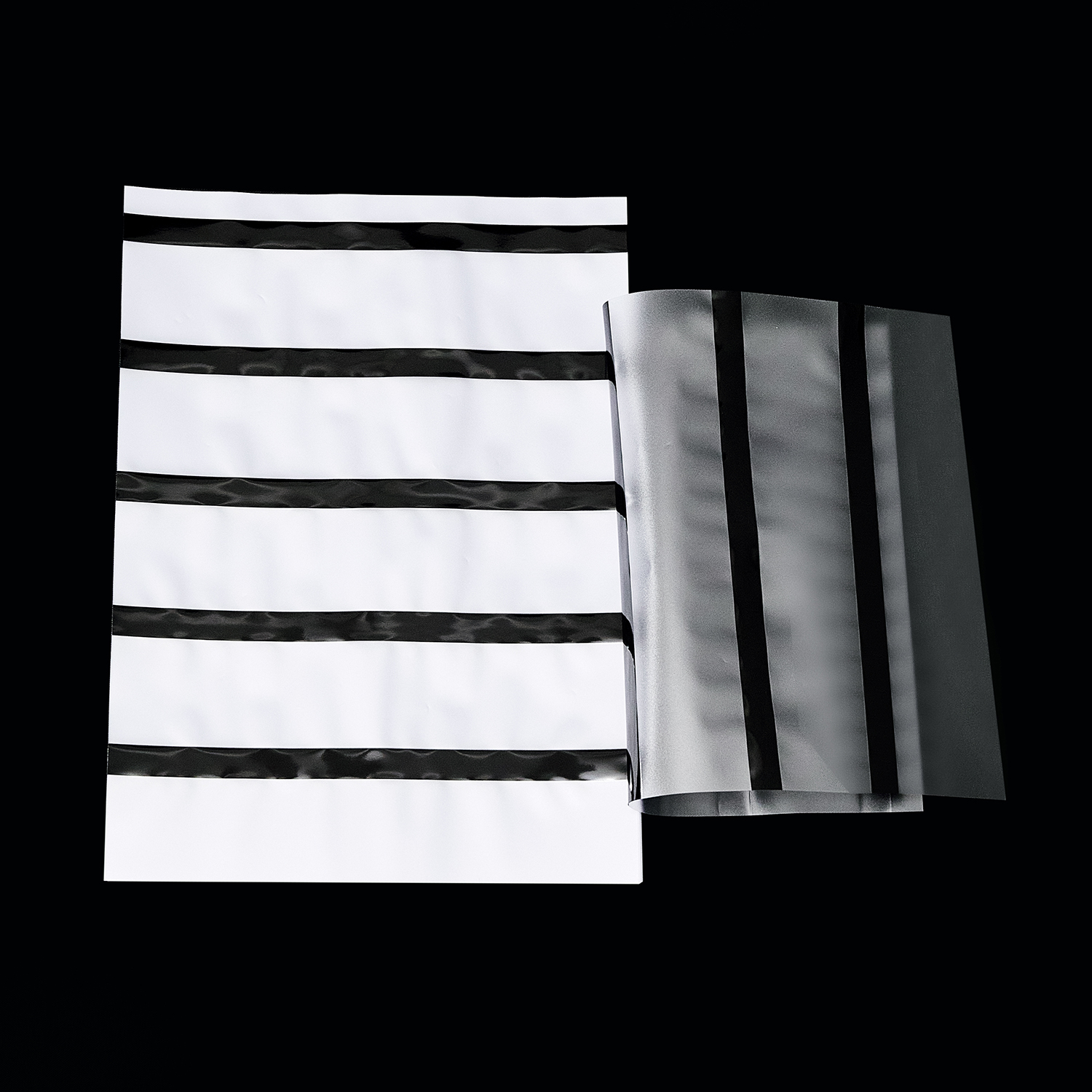

Ketian PVC Overlay With Magnetic Stripe is based on high-quality PVC as the base material and specially designed for magnetic stripe cards. It can effectively ensure the stability of magnetic stripe signal transmission and the structural durability of cards, fully meeting the needs of large-scale mass production.

Moreover, as a professional manufacturer of smart card base materials, our PVC Overlay With Magnetic Stripe has excellent lamination compatibility and outstanding dimensional stability, making it a reliable choice for smart card producers worldwide.

Product Features

1. Accurate Adhesiveness: Bonds firmly with smart card base materials, and the magnetic stripe has high peel strength from the card, ensuring no easy detachment during long-term use.

2. Stable Magnetic Performance: The magnetic stripe features uniform signal output, strong anti-demagnetization capability, and excellent stability in data storage and reading, meeting the needs of scenarios such as finance and access control.

3. Good Processing Adaptability: Available in various thickness specifications, compatible with card-making processes like lamination and cutting, and suitable for efficient operation of automated production lines.

4. Excellent Wear and Weather Resistance: The surface wear-resistant coating can resist daily friction, and the product is resistant to damp heat and aging, effectively extending the service life of the magnetic stripe.

5. Compliance with Standards: Adopts an environmentally friendly formula, complying with international standards such as RoHS and REACH, ensuring environmental safety in card production and use.

Technical Parameters

Item	Specification
Thickness	0.04mm～0.1mm (common specifications; other specifications are customizable)
Length	330mm～485mm (common specifications; other specifications are customizable)
Width	210mm～485mm (common specifications; other specifications are customizable)
Color (Magnetic Stripe)	Black, Gold, Silver, Red, Green, Blue
Vicat Softening Point(B50)	72℃～76℃
Coercivity	219kA/m±10% (2750 Oe±10%)
Magnetic Stripe Type	HICO 2750oe / LoCo 300oe
Electromagnetic Conversion Performance	Complies with ISO 7811-6 International Standard
Delivery Form	Sheet
Certification	Compliant with RoHS, UL, REACH, GRS

Application Fields

Our PVC Overlay With Magnetic Stripe is mainly used as the inner core material for producing various magnetic stripe cards and composite cards, including:

1. Non-contact Smart Cards (including magnetic stripe composite type): Subway cards, public transport cards, access control cards

2. Financial Payment Cards: Credit cards, debit cards, prepaid gift cards

3. Commercial Membership Cards: Membership cards for various supermarkets, shopping malls, and service industries

Product Storage

1. The product should be stored in a cool and dry indoor area, stacked horizontally. Please avoid direct sunlight and heavy pressure, and keep the original packaging sealed to prevent moisture. Storage temperature: room temperature.

2. Under normal storage conditions, the shelf life is one year (subject to the manufacturer's instructions).

3. When in use, follow the principle of taking only what is needed for use. Any remaining product should be sealed and stored promptly, and the opened product should be used up as soon as possible.

An Ideal Choice for Customized Smart Card Solutions

Ketian has professional expertise and an annual production capacity of 15,000 tons, enabling it to fulfill large-volume, high-quality customized orders for PVC smart card base materials. We are ready to offer tailor-made solutions to meet your specific technical and design requirements. Contact us now via email: info@ketian.net.cn, to request free samples and obtain a detailed quote for your project.
